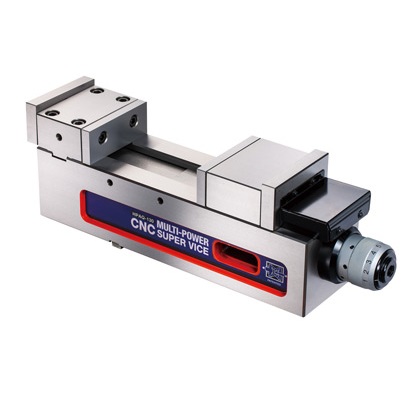

Multi-Power CNC Vise nil
SKP066273

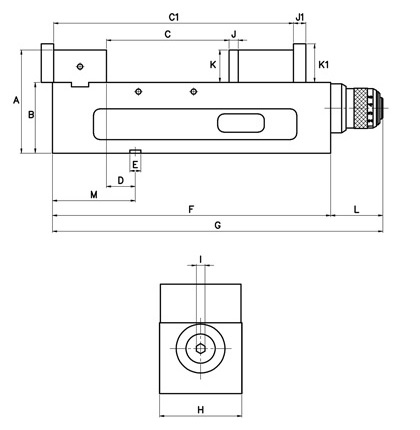

| SKU | A | B | C | C1 | D | E | F | G | H | I | J | J1 | K | K1 | L | M | Max. Clamping Force |
| SKP066273 | 145 | 105 ±0.01 |
170 | 185-350 | 65 ±0.02 |
18 | 420 | 507 | 104 | 14 | 15 | 20 | 40 | 50 | 87 | 145 | 4000 kgf |
| SKP066274 | 163 | 115 ±0.01 |
205 | 195-395 | 57 ±0.02 |
18 | 470 | 557 | 134 | 14 | 15 | 20 | 48 | 58 | 87 | 145 | 5500 kgf |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
