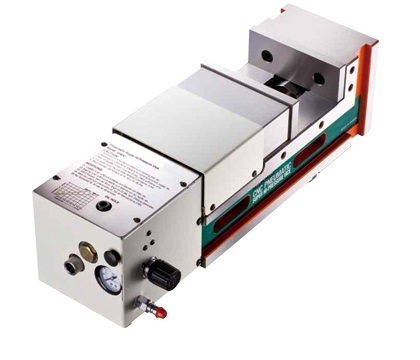

VICE PNEUMATIC SUPER HI-PRESSURE HBV-4"-100
THS003997
$ USD
284600
284600

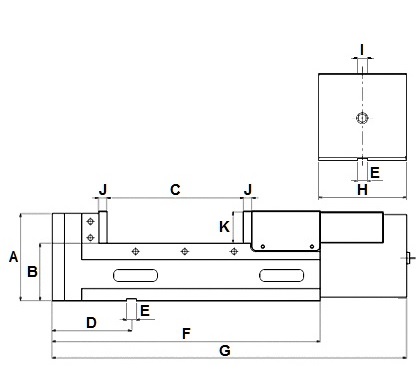

| SKU | A | B | C | D | E | F | G | H | I | J | K | Max. Clamping Force |
Safety Range |
| THS003997 | 145 | 100±0.01 | 100 | 145 | 18 | 320 | 475 | 100 | 14 | 15 | 48 | 3500 kgf | 8 mm |
| THS003998 | 157 | 105±0.01 | 150 | 145 | 18 | 380 | 560 | 130 | 14 | 15 | 55 | 3500 kgf | 8 mm |
| THS003999 | 157 | 105±0.01 | 160 | 147 | 18 | 400 | 580 | 160 | 14 | 15 | 55 | 5000 kgf | 8 mm |
| THS004000 | 157 | 105±0.01 | 250 | 147 | 18 | 490 | 670 | 160 | 14 | 15 | 55 | 5000 kgf | 8 mm |
| THS004002 | 170 | 110±0.01 | 300 | 180 | 18 | 570 | 750 | 200 | 14 | 18 | 63 | 8000 kgf | 8 mm |
Please watch the demo video for the pneumatic vise automatic function.
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003997 VICE PNEUMATIC SUPER HI-PRESSURE HBV-4"-100 | ||||||
|
|
||||||
| THS003998 VICE PNEUMATIC SUPER HI-PRESSURE HBV-5"-150 | ||||||
|
|
||||||
| THS003999 VICE PNEUMATIC SUPER HI-PRESSURE HBV-6"-160 | ||||||
|
|
||||||
| THS004000 VICE PNEUMATIC SUPER HI-PRESSURE HBV-6"-250 | ||||||
|
|
||||||
| THS004002 VICE PNEUMATIC SUPER HI-PRESSURE HBV-8"-300 | ||||||
|
|
||||||
| THS004670 VICE PNEUMATIC SUPER HI-PRESSURE HBV-4"-100 AUTOMATIC FUNCTION | ||||||
|
|
||||||
Updated 202501
