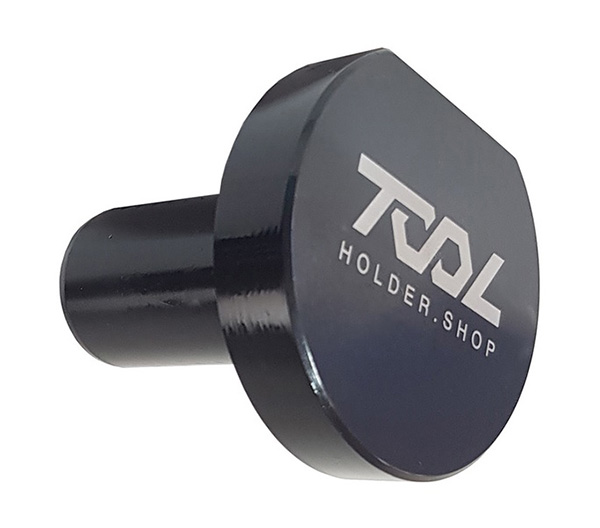

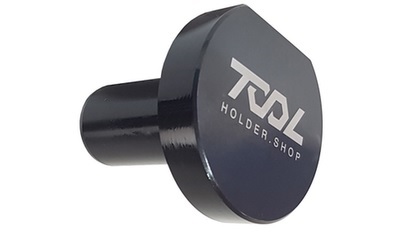

VDI20 FORM Z2 PLUG PLASTIC
THS016709
![](/images/drawings/VDI Plug-2091.jpg)
![](/images/drawings/VDI Plug-2092.jpg)
![](/images/drawings/VDI Plug-2099.jpg)
$ USD
1500
In stock 15
![USD](/img/flag_usa.png)

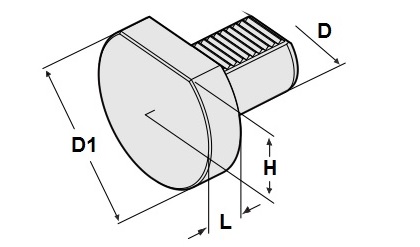

SKU | Material | D | D1 | H | L |
THS000182 | Steel | 20 | 50 | - | 16 |
THS000641 | Plastic | 25 | 58 | 25 | 13 |
THS000187 | Steel | ||||
THS000189 | Plastic | 30 | 68 | 26.5 | 16 |
THS000183 | Steel | ||||
THS000188 | Plastic | 40 | 82 | 32 | 20 |
THS005844 | Steel | ||||
THS000184 | Steel | 83 | - | ||
THS000185 | Steel | 50 | 98 | 35 | 20 |
THS000186 | Steel | 60 | 116 | - | 20 |
Updated 2022-02-23
DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
THS000182 VDI20 FORM Z2 PLUG STEEL OD=50 mm L=16 mm | ||||||
STRAIGHT | 50 mm | 16 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS000183 VDI30 FORM Z2 PLUG STEEL OD=68 mm L=16 mm | ||||||
STRAIGHT | 68 mm | 16 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS000184 VDI40 FORM Z2 PLUG STEEL ROUND OD=83 mm L=20 mm | ||||||
STRAIGHT | 83 mm | 20 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS000185 VDI50 FORM Z2 PLUG STEEL OD=98 mm L=20 mm | ||||||
STRAIGHT | 98 mm | 20 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS000186 VDI60 FORM Z2 PLUG STEEL OD=116 mm L=20 mm | ||||||
STRAIGHT | 116 mm | 20 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS000187 VDI25 FORM Z2 PLUG STEEL OD=58 mm L=13 mm | ||||||
STRAIGHT | 58 mm | 13 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS000188 VDI40 FORM Z2 PLUG PLASTIC OD=82 mm L=20 mm | ||||||
STRAIGHT | 82 mm | 20 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS000189 VDI30 FORM Z2 PLUG PLASTIC OD=68 mm L=16 mm | ||||||
STRAIGHT | 68 mm | 16 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS003050 VDI50 FORM Z2 PLUG PLASTIC | ||||||
STRAIGHT | 0 mm | 0 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS005844 VDI40 FORM Z2 PLUG STEEL CUT SIDE | ||||||
STRAIGHT | 0 mm | 0 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS016709 VDI20 FORM Z2 PLUG PLASTIC | ||||||
STRAIGHT | 0 mm | 0 mm |
STATIC STATIC |
STRAIGHT | NO COOLANT | STRAIGHT |
THS016710 VDI25 PLUG PLASTIC | ||||||
STRAIGHT | 0 mm | 0 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
THS016711 VDI16 PLUG PLASTIC | ||||||
STRAIGHT | 0 mm | 0 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202409
