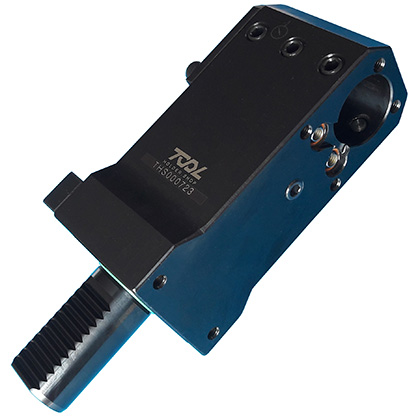

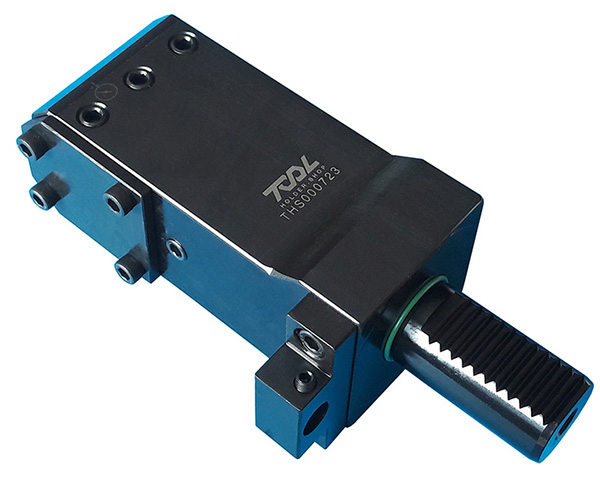

Name: VDI Boring Bar Holder nil
Availability: OutOfStock

Home >> Tool Holder Static >> VDI Boring Bar Holder >> VDI Boring Bar Holder nil

SKU	VDI size DIN 69880	D1	H1	H2	H3	H4	L1	L2	P
THS000261	25	1-1/4"	58	58	58	29	75	99	40
THS000644	30	1"	65	52	62	31	85	108	48
THS000724	30	1-1/4"	65	52	62	31	65	90	48
THS000725	30	1-1/4"	65	52	62	31	85	108	48
THS000721	30	1-1/4"	65	52	62	31	100	123	48
THS000723	30	1-1/4"	65	52	62	31	120	143	48
THS000643	30	1-1/2"	66	66	85.5	54.5	85	112	48
THS000726	30	2"	80	80	85	42.5	85	123	59.5
THS003902	40	1"	80	65	85	42.5	100	127	56
THS003905	40	1"	80	65	85	42.5	120	147	56
THS000740	40	1-1/4"	80	65	85	42.5	85	112	56
THS000735	40	1-1/4"	80	65	85	42.5	100	127	56
THS003907	40	1-1/4"	80	65	85	42.5	120	147	56
THS000733	40	1-1/2"	80	65	85	42.5	85	112	56
THS000734	40	1-1/2"	80	65	85	42.5	90	115	56
THS000732	40	1-1/2"	80	65	85	42.5	100	127	56
THS000730	40	1-1/2"	80	65	85	42.5	120	147	56
THS000731	40	1-1/2"	80	65	85	42.5	140	167	56
THS000752	50	1-1/2"	90	80	96	48	100	137	64
THS000754	50	2"	90	80	96	48	100	137	64
THS000755	50	2"	90	82	96	48	110	147	64
THS000753	50	2-1/2"	98	104	96	48	110	152	64

DIRECTION	CAPACITY	PROJECTION	ROTATION	HAND	COOLANT	OFFSET
THS000009 VDI25 FORM T1 RADIAL BORING BAR HOLDER ID=32 mm L= 75 mm P=40 mm
ANGLE 90 DEGREE	32 mm	75 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000254 VDI50 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=100 mm P=64 mm
ANGLE 90 DEGREE	40 mm	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000255 VDI50 FORM T1 RADIAL BORING BAR HOLDER ID=50 mm L=100 mm
ANGLE 90 DEGREE	50 mm	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000256 VDI50 FORM T1 RADIAL BORING BAR HOLDER ID=60 mm L=110 mm P=64 mm
ANGLE 90 DEGREE	60 mm	110 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000261 VDI25 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L= 75 mm PIN=40 mm
ANGLE 90 DEGREE	( 1- 1/ 4)"	75 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000643 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=85 mm P=48 mm
ANGLE 90 DEGREE	( 1- 1/ 2)"	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000644 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=( 1)" L=85 mm P=48 mm
ANGLE 90 DEGREE	( 1)"	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000707 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=32 mm L=100 mm P=48 mm
ANGLE 90 DEGREE	32 mm	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000708 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=32 mm L=120 mm P=48 mm
ANGLE 90 DEGREE	32 mm	120 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000717 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=32 mm L=125 mm P=48 mm
ANGLE 90 DEGREE	32 mm	125 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000718 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=32 mm L= 65 mm P=48 mm
ANGLE 90 DEGREE	32 mm	65 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000721 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=100 mm P=48 mm
ANGLE 90 DEGREE	( 1- 1/ 4)"	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000723 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=120 mm P=48 mm
ANGLE 90 DEGREE	( 1- 1/ 4)"	120 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000724 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=65 mm P=48 mm
ANGLE 90 DEGREE	( 1- 1/ 4)"	65 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000725 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=85 mm P=48 mm
ANGLE 90 DEGREE	( 1- 1/ 4)"	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000726 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=( 2)" L=85 mm P=48 mm
ANGLE 90 DEGREE	( 2)"	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000727 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=32 mm L=85 mm P=48 mm
ANGLE 90 DEGREE	32 mm	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000728 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=85 mm P=48 mm
ANGLE 90 DEGREE	40 mm	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000729 VDI30 FORM T1 RADIAL BORING BAR HOLDER ID=50 mm L=85 mm P=59.5 mm
ANGLE 90 DEGREE	50 mm	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000730 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=120 mm P=56 mm
ANGLE 90 DEGREE	( 1- 1/ 2)"	120 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000731 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=140 mm P=56 mm
ANGLE 90 DEGREE	( 1- 1/ 2)"	140 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000732 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=100 mm P=56 mm
ANGLE 90 DEGREE	( 1- 1/ 2)"	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000733 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=85 mm P=56 mm
ANGLE 90 DEGREE	( 1- 1/ 2)"	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000734 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=90 mm P=56 mm
ANGLE 90 DEGREE	( 1- 1/ 2)"	90 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000735 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=100 mm P=56 mm
ANGLE 90 DEGREE	( 1- 1/ 4)"	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000736 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=100 mm P=56 mm
ANGLE 90 DEGREE	40 mm	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000737 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=100 mm
ANGLE 90 DEGREE	40 mm	100 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000738 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=120 mm P=56 mm
ANGLE 90 DEGREE	40 mm	120 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000739 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=140 mm P=56 mm
ANGLE 90 DEGREE	40 mm	140 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT
THS000740 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 4)" L=85 mm P=56 mm
ANGLE 90 DEGREE	( 1- 1/ 4)"	85 mm	STATIC STATIC	STRAIGHT	EXTERNAL COOLANT	STRAIGHT

Updated 202502.03
