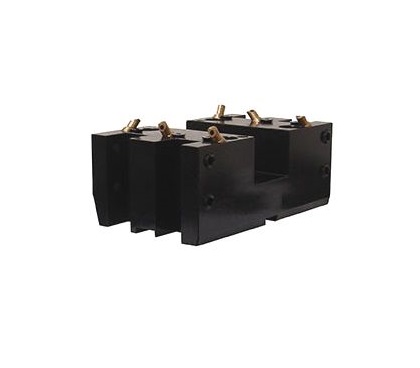

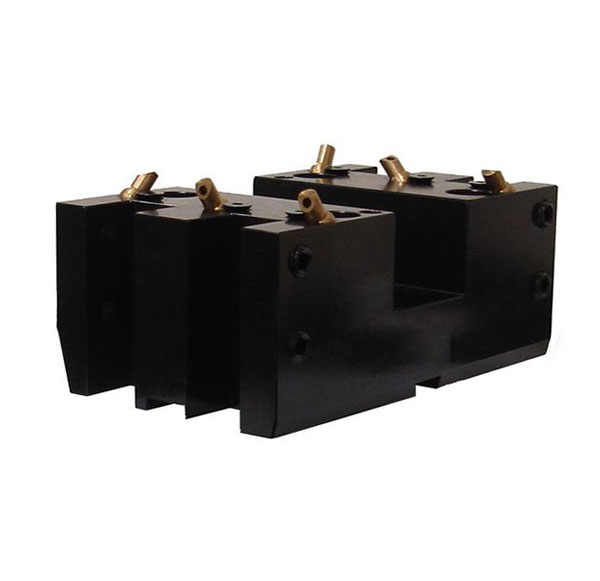

BMT60 BOLT PATTERN 84x94 TURNING HOLDER H= 20 mm x4 L=99 MORI SEIKI NL1500 NL2000 NL3000
THS019082
![](/images/drawings/MORI SEIKI Turning Holders-5941.jpg)
![](/images/drawings/MORI SEIKI Turning Holders-5942.jpg)
![](/images/drawings/MORI SEIKI Turning Holders-5949.jpg)

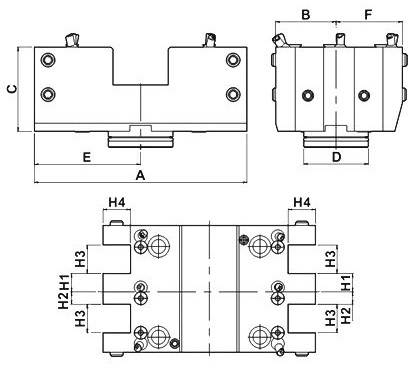

SKU | D | H1 | H2 | H3 | H4 | A | B | C | E | F | MORI SEIKI LATHE |
THS007065 | 59.9 | 17 | 11.5 | 26 | 25 | 197 | 56 | 78 | 98.5 | 61.5 | MORI SEIKI NL1500 MORI SEIKI NL2000 MORI SEIKI NL2500 MORI SEIKI NL3000 |
THS003965 | 0.67" | 0.452" | 1.039" | 1" | 7.756" | 2.205" | 3.07" | 3.878" | 2.421" |
DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
THS003965 BMT60 BOLT PATTERN 84x94 TURNING HOLDER H=( 1)" x4 L=99 mm MORI SEIKI NL1500 NL2000 NL3000 | ||||||
STRAIGHT | ( 1)" | 99 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
THS007065 BMT60 BOLT PATTERN 84x94 TURNING HOLDER H=25 mm x4 L=99 mm MORI SEIKI NL1500 NL2000 NL3000 | ||||||
STRAIGHT | 25 mm | 99 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
THS019080 BMT60 BOLT PATTERN 84x94 TURNING HOLDER H=( 3/ 4)" x4 L=99 MORI SEIKI NL1500 NL2000 NL3000 | ||||||
STRAIGHT | ( 3/ 4)" | 99 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
THS019082 BMT60 BOLT PATTERN 84x94 TURNING HOLDER H= 20 mm x4 L=99 MORI SEIKI NL1500 NL2000 NL3000 | ||||||
STRAIGHT | 20 mm | 99 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202409
