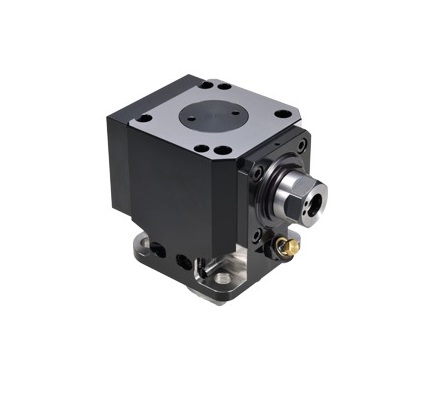

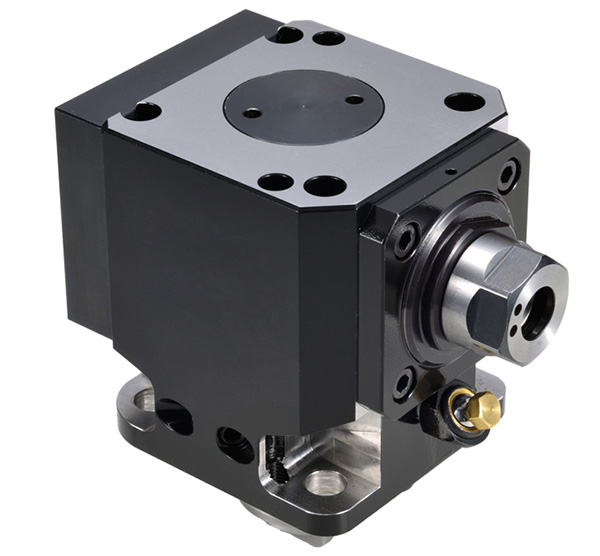

MIYANO 52x56 DRILLING MILLING RADIAL HEAD ER16 L=59 mm MIYANO BNA42 BNC42 MIYANO CG70C000
THS018432
![](/images/drawings/MIYANO Drilling-Milling Heads-6351.jpg)
![](/images/drawings/MIYANO Drilling-Milling Heads-6352.jpg)
![](/images/drawings/MIYANO Drilling-Milling Heads-6359.jpg)

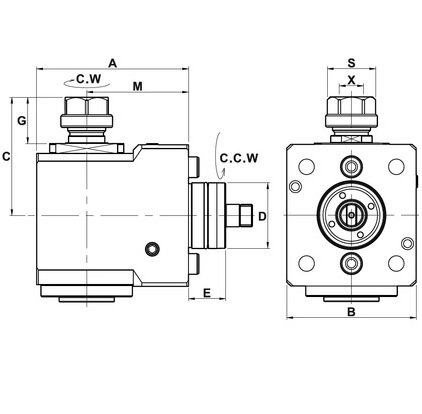

SKU | D | X Capacity |
S | RPM | A | B | C | E | G | M | MIYANO LATHE |
THS004663 | 38 | 1~10 ER16 | 30 | 5000 | 88 | 75 | 69 | 21.5 | 27 | 59 | MIYANO BNA-34C MIYANO 42C MIYANO BNA-34S MIYANO 42S MIYANO BNA-34DHY MIYANO 42DHY MIYANO BNA-42MSY |
DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
THS004663 MIYANO DRILLING MILLING RADIAL HEAD ER16 L=59 mm INTERNAL COOLANT OEM MIYANO CG70C000 | ||||||
ANGLE 90 DEGREE | ER16 | 59 mm |
CW-CCW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
THS018432 MIYANO 52x56 DRILLING MILLING RADIAL HEAD ER16 L=59 mm MIYANO BNA42 BNC42 MIYANO CG70C000 | ||||||
ANGLE 90 DEGREE | ER16 | 59 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
THS019068 VACANT | ||||||
STRAIGHT | VARIOUS |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT | |
THS019069 VACANT | ||||||
STRAIGHT | VARIOUS |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202409
Tool holder machine interface: RADIAL (STAR TYPE) turret, MIYANO BNA-38, DIN1809, ANY
