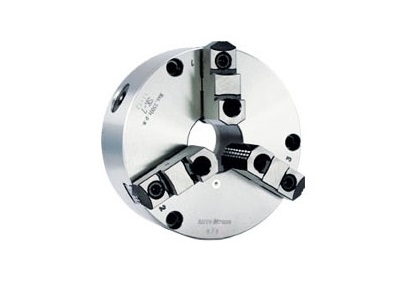

SCROLL CHUCK SK-10 MANUAL
THS018348
$ USD
160400
160400

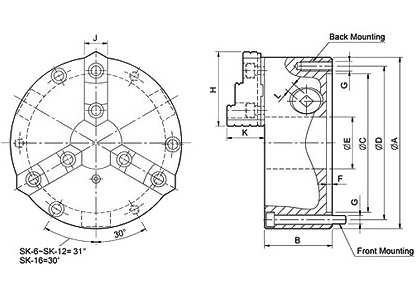

| SKU | A | B | C | D | E | F | G | H | J | K | L | Allowable Handle Torque (kgf/m) |
Gripping Force (kgf) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment of Inertia (kg/m2) |
Gripping Range | ||
| Back | Front | O.D. (mm) |
I.D. (mm) |
||||||||||||||||
| SKP063951 | 112 | 58 | 80 | 95 | 32 | 4.8 | - | 3-M8x65 | 47 | 19 | 31.6 | 8 | 4.5 | 1200 | 2500 | 3.8 | - | Ø3 - Ø95 | Ø29 - Ø84 |
| SKP002532 | 167 | 67 | 130 | 147 | 45 | 5.5 | 3-M10 | 3-M10x70 | 72 | 26 | 40.2 | 10 | 9.0 | 2200 | 2000 | 9 | 0.03 | Ø4 - Ø160 | Ø55 - Ø155 |
| SKP002944 | 192 | 76.5 | 155 | 172 | 58 | 5.5 | 3-M10 | 3-M10x80 | 81.2 | 28 | 42 | 11 | 11.0 | 2500 | 2000 | 13.8 | 0.06 | Ø8 - Ø180 | Ø62 - Ø170 |
| SKP008057 | 200 | 76.5 | 160 | 176 | 58 | 5.5 | 3-M10 | 3-M10x80 | 82 | 28 | 42 | 11 | 11.0 | 2500 | 2000 | 15.5 | 0.07 | Ø8 - Ø190 | Ø68 - Ø180 |
| SKP002732 | 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 | 3-M12x90 | 90.9 | 32 | 51.2 | 12 | 15.0 | 3000 | 2000 | 22 | 0.16 | Ø11 - Ø220 | Ø70 - Ø210 |
| SKP002851 | 273 | 87 | 230 | 250 | 89 | 8 | 3-M12 | 3-M12x90 | 100.5 | 35 | 56.7 | 12 | 19.5 | 4000 | 1800 | 29.7 | 0.26 | Ø12 - Ø260 | Ø80 - Ø250 |
| SKP002860 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 | 3-M12x110 | 114.5 | 40 | 56.8 | 14 | 21.0 | 4200 | 1800 | 43.5 | 0.58 | Ø15 - Ø300 | Ø90 - Ø290 |
| SKP002875 | 405 | 122 | 345 | 375 | 160 | 8.7 | - | 6-M14x130 | 148.6 | 50 | 76.1 | 15 | 25.0 | 4500 | 1500 | 98 | 1.72 | Ø30 - Ø380 | Ø110 - Ø360 |
| Compatibility with Kitagawa Chucks | |
| SKP002532 | Kitagawa JN06T |
| SKP002944 | Kitagawa JN07T |
| SKP002732 | Kitagawa JN09T |
| SKP002851 | Kitagawa JN10T |
| SKP002860 | Kitagawa JN12T |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013809 SCROLL CHUCK MANUAL 3 JAW SK-06 | ||||||
|
|
||||||
| THS018348 SCROLL CHUCK SK-10 MANUAL | ||||||
|
|
||||||
Updated 202501
