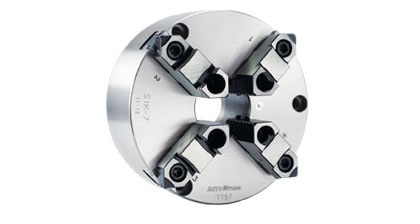

Scroll Chuck Jaw Chuck nil
SKP002241

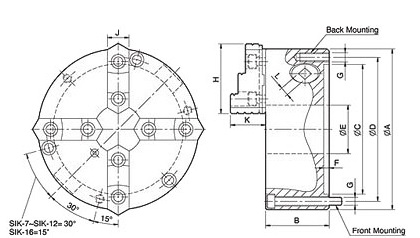

| SKU | A | B | C | D | E | F | G | H | J | K | L | Allowable Handle Torque (kgf/m) |
Gripping Force (kgf) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment of Inertia (kg/m2) |
Gripping Range | ||
| Back | Front | O.D. Diameter (mm) |
I.D. Diameter (mm) |
||||||||||||||||
| SKP002528 | 192 | 76.5 | 155 | 172 | 58 | 5.5 | 3-M10 | 3-M10x80 | 82 | 28 | 42 | 11 | 11.0 | 2500 | 2000 | 14.1 | 0.06 | Ø8 - Ø180 | Ø62 - Ø170 |
| SKP002512 | 232 | 84 | 190 | 210 | 70 | 6 | 3-M12 | 3-M12x90 | 96 | 32 | 51.2 | 12 | 15.0 | 3000 | 2000 | 22.2 | 0.16 | Ø11 - Ø220 | Ø70 - Ø210 |
| SKP002241 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12 | 3-M12x110 | 114.5 | 40 | 56.8 | 14 | 21.0 | 4200 | 1800 | 45 | 0.58 | Ø15 - Ø300 | Ø90 - Ø290 |
| SKP063956 | 405 | 122 | 345 | 375 | 160 | 8.7 | - | 6-M14x130 | 148.6 | 50 | 76.1 | 15 | 25.0 | 4500 | 1500 | 108 | 1.72 | Ø30 - Ø380 | Ø110 - Ø360 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
