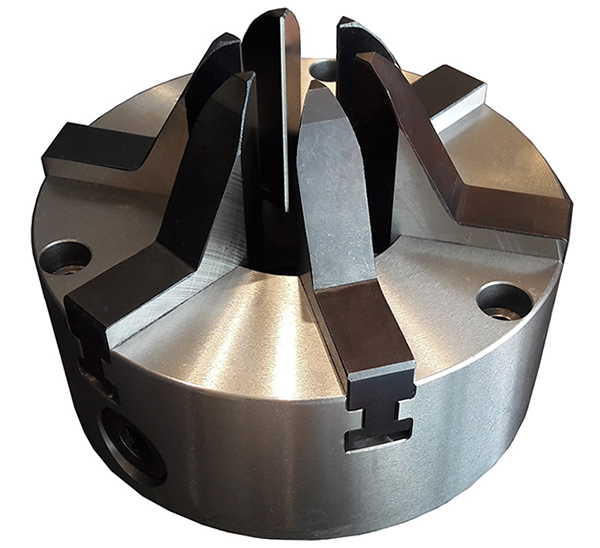

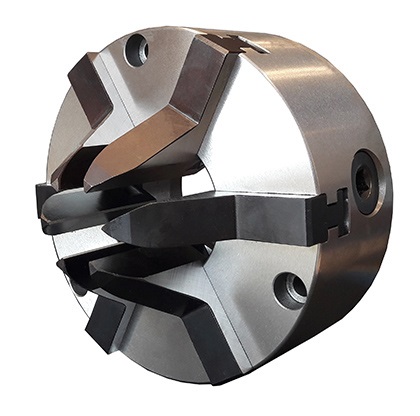

JAW CHUCK SE-04
THS013702
$ USD
71200
71200

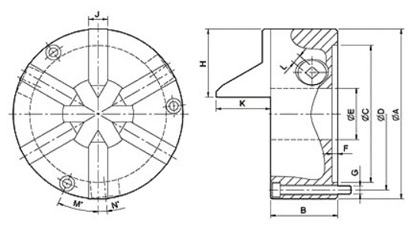

| SKU | A | B | C | D | E | F | G | H | J | K | L | M | N | Allowable Handle Torque (kgf/m) |
Gripping Force (kgf) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment of Inertia (kg/m2) |
Gripping Range | |
| O.D. Diameter (mm) |
I.D. Diameter (mm) |
|||||||||||||||||||
| SE-4 | 112 | 66 | 80 | 95 | 32 | 4.8 | 3-M8 | 45 | 14 | 39.7 | 8 | 30 | 6.5 | 1.6 | 440 | 1200 | 4 | - | Ø2 - Ø32 | |
| SE-6 | 165 | 67 | 130 | 147 | 51 | 5.5 | 3-M8 | 66.5 | 19 | 40.7 | 10 | 23.3 | 6.2 | 2.8 | 660 | 1200 | 9 | 0.03 | Ø3 - Ø51 | |
| SE-7 | 192 | 76.5 | 155 | 172 | 80 | 5.5 | 3-M10 | 77 | 21.5 | 61.5 | 11 | 24 | 5.3 | 3.6 | 850 | 1000 | 14 | 0.06 | Ø3 - Ø81 | |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013701 JAW CHUCK SE-07 6 JAWS | ||||||
|
|
||||||
| THS013702 JAW CHUCK SE-04 | ||||||
|
|
||||||
| THS013703 JAW CHUCK SE-06 | ||||||
|
|
||||||
Updated 202501
