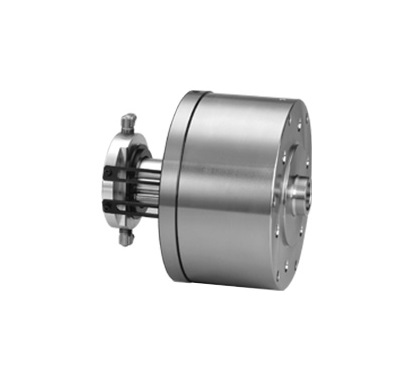

HYDRAULIC CYLINDER MR25060 FOR POWER CHUCK
THS014497
$ USD
1873400
1873400
| SKU | Piston Diameter (mm) |
Piston Area (cm2) Push Side / Pull Side |
Max.Draw Bar Force KN (kgf) Push Side / Pull Side |
Piston Stroke (mm) |
Max. Operating Pressure MPa (kgf / cm2) |
Max. Speed (R.P.M.) |
Moment of Inertia I (kg / m2) |
Weight (kg) |
Total Leakage L/min |
| SKP064197 | 200 | 310 / 286 | 146 (14887) / 134 (13664) | 60 | 4.9 (50) | 5000 | 0.55 | 49 | 2 |
| SKP064198 | 250 | 481.5 / 453.6 | 227 (23147) / 214 (21822) | 60 | 4.9 (50) | 2000 | 0.81 | 72 | 2 |

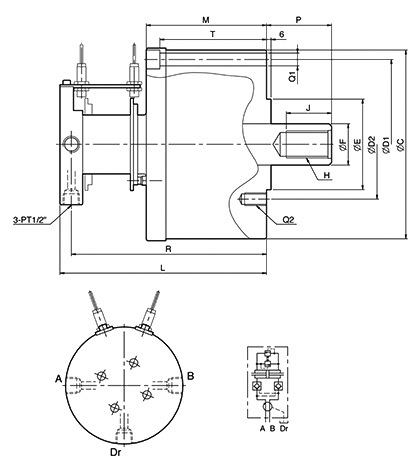

| SKU | C | D1 | D2 | E (h7) |
F | G | H | J | L | M | P max. |
P min. |
Q1 | Q2 | R | T |
| SKP064197 | 250 | 225 | 145 | 120 | 55 | 37 | M36xP4.0 | 60 | 270 | 156 | 85 | 25 | 6-Ø17 | 6-M16 | 259 | 140 |
| SKP064198 | 300 | 275 | 220 | 160 | 65 | 44 | M42xP3.0 | 60 | 280 | 168 | 85 | 25 | 6-Ø17 | 6-M20 | 265 | 150 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014496 HYDRAULIC CYLINDER MR20060 FOR POWER CHUCK | ||||||
|
|
||||||
| THS014497 HYDRAULIC CYLINDER MR25060 FOR POWER CHUCK | ||||||
|
|
||||||
