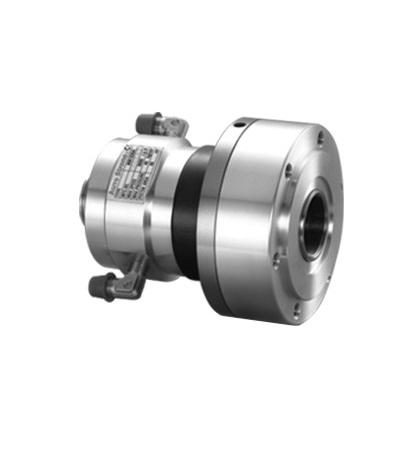

HYDRAULIC CYLINDER MM1036A FOR POWER CHUCK
THS014494
$ USD
1873400
1873400
| SKU | Piston Diameter (mm) |
Piston Area (cm2) Push Side / Pull Side |
Max.Draw Bar Force KN (kgf) Push Side / Pull Side |
Piston Stroke (mm) |
Max. Operating Pressure MPa (kgf / cm2) |
Max. Speed (R.P.M.) |
Moment of Inertia I (kg / m2) |
Weight (kg) |
Total Leakage L/min |
| SKP064194 | 36 | 64 / 60 | 23.8 (2427) / 22.3 (2274) | 5 | 4.0 (40.8) | 8000 | 0.013 | 7 | 0.8 |
| SKP064195 | 46 | 100 / 89 | 38 (3875) / 33 (3365) | 15 | 4.0 (40.8) | 7000 | 0.026 | 9.8 | 3.0 |

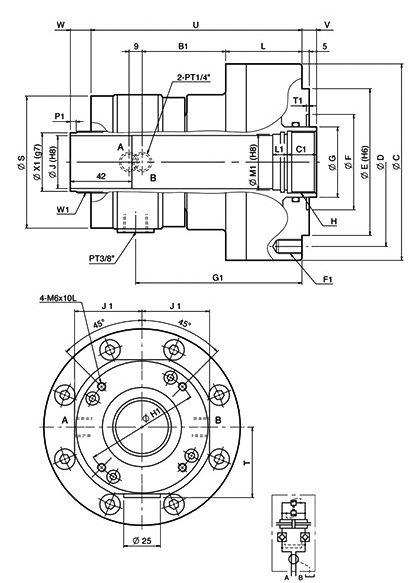

| SKU | C | D | E | F | G | H | J | L | T | U | V max. |
V min. |
W max. |
W min. |
B1 | C1 | F1 | G1 | H1 | J1 | L1 | M1 | Q1 | T1 | W1 | P1 | X1 |
| SKP064194 | 134 | 115 | 100 | 65 | 48 | M42xP1.5 | 36 | 52 | 48 | 144 | 10 | 5 | 17 | 12 | 57 | 20 | 6-M10x15 | 113.5 | 76 | 46 | 10 | 38 | M4x9L | 2 | M42xP1.5 | 2 | 40 |
| SKP064195 | 155 | 130 | 100 | 80 | 65 | M55xP2.0 | 46 | 76 | 61 | 179 | 15 | 0 | 40 | 25 | 59.5 | 30 | 12-M10x20 | 140 | 105 | 59 | 15 | 50 | M6x10L | 6 | M52xP1.5 | 9 | 50 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014494 HYDRAULIC CYLINDER MM1036A FOR POWER CHUCK | ||||||
|
|
||||||
| THS014495 HYDRAULIC CYLINDER MM1246A FOR POWER CHUCK | ||||||
|
|
||||||
