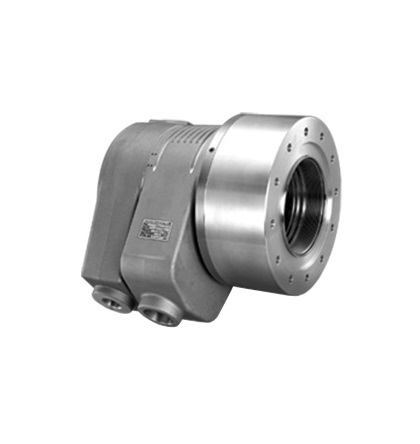

HYDRAULIC CYLINDER ML2816 WITHOUT COOLANT COLLECTOR
THS014492
$ USD
1155000
1155000
| SKU | Piston Diameter (mm) |
Piston Area (cm2) Push Side / Pull Side |
Max.Draw Bar Force KN (kgf) Push Side / Pull Side |
Piston Stroke (mm) |
Max. Operating Pressure MPa (kgf / cm2) |
RPM | Moment of Inertia I (kg / m2) |
Weight (kg) |
Total Leakage L/min |
| SKP064201 | 285 | 394 / 350 | 116.8 (11910) / 106.8 (10584) | 42 | 3.3 (33.6) | 2000 | 1.08 | 87 | 11 |
| SKP064202 | 285 | 394 / 350 | 116.8 (11910) / 106.8 (10584) | 42 | 3.3 (33.6) | 2000 | 0.90 | 72 | 11 |
| SKP064203 | 335 | 515.7 / 416.9 | 152.9 (15591) / 136.9 (13960) | 42 | 3.3 (33.6) | 1600 | 1.09 | 103 | 14 |

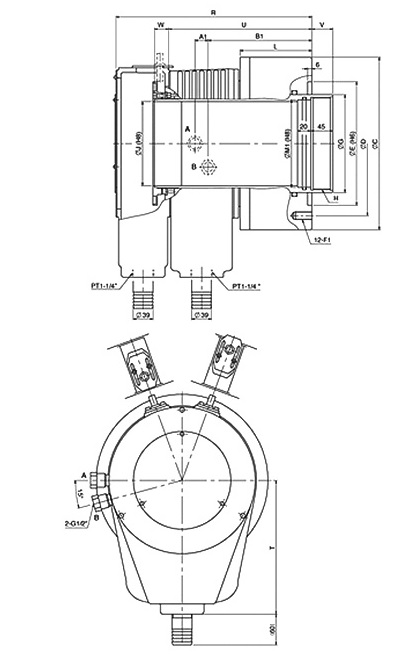

| SKU | C | D | E (h6) |
G | H | J | L | R | T | U | V max. |
V min. |
W max. |
W min. |
A1 | B1 | F1 | M1 |
| SKP064201 | 335 | 280 | 240 | 190 | M158x3.0 | 145 | 140 | 382 | 260 | 279 | 41 | -1 | 67 | 25 | 18 | 202 | M16x32L | 150 |
| SKP064202 | 335 | 280 | 240 | 190 | M180x3.0 | 166.5 | 140 | 382 | 260 | 279 | 41 | -1 | 67 | 25 | 18 | 202 | M16x32L | 170 |
| SKP064203 | 390 | 320 | 240 | 230 | M215x3.0 | 205 | 147 | 392 | 260 | 292 | 41 | -1 | 67 | 25 | 18 | 210 | M20x32L | 210 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014491 HYDRAULIC CYLINDER ML2814-CM28B WITHOUT COOLANT COLLECTOR | ||||||
|
|
||||||
| THS014492 HYDRAULIC CYLINDER ML2816 WITHOUT COOLANT COLLECTOR | ||||||
|
|
||||||
| THS014493 HYDRAULIC CYLINDER ML3320-CM33B WITHOUT COOLANT COLLECTOR | ||||||
|
|
||||||
