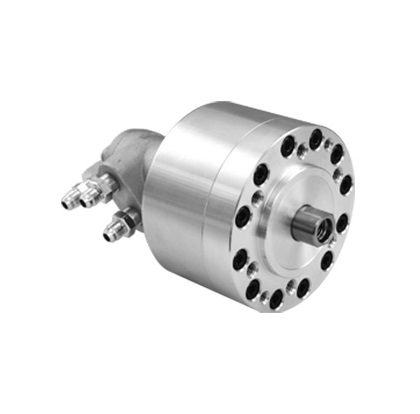

HYDRAULIC CYLINDER MH150 FOR POWER CHUCK
THS014482
| SKU | Piston Diameter (mm) |
Piston Area (cm2) Push Side / Pull Side |
Max.Draw Bar Force KN (kgf) Push Side / Pull Side |
Piston Stroke (mm) |
Max. Operating Pressure MPa (kgf / cm2) |
RPM | Moment of Inertia I (kg / m2) |
Weight (kg) |
Total Leakage L/min |
| SKP007824 | 80 | 47.7 / 42.8 | 15.5 (1580) / 13.9 (1417) | 15 | 3.5 (35.7) | 6000 | 0.005 | 5.1 | 0.4 |
| SKP007825 | 100 | 75.4 / 70.5 | 24.5 (2498) / 22.9 (2335) | 20 | 3.5 (35.7) | 5500 | 0.0125 | 6.6 | 0.4 |
| SKP007826 | 125 | 121.1 / 114 | 39.3 (4007) / 37 (3773) | 25 | 3.5 (35.7) | 5500 | 0.02 | 8.4 | 0.4 |
| SKP007827 | 150 | 176 / 160 | 66 (6730) / 60 (6118) | 30 | 4.0 (40.8) | 4000 | 0.047 | 10.4 | 0.8 |

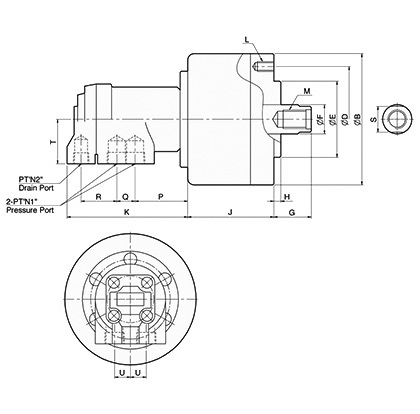

| SKU | B | D | E (h7) |
F | G max. |
G min. |
H | J | K | L | M | N1 | N2 | P | Q | R | T | U | S |
| SKP007824 | 112 | 90 | 65 | 25 | 45 | 30 | 6 | 73.5 | 103 | 6-M8x16 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| SKP007825 | 135 | 100 | 80 | 25 | 45 | 25 | 6 | 88.5 | 103 | 6-M10x19 | M16x2.0x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 22 |
| SKP007826 | 160 | 130 | 110 | 30 | 51 | 26 | 6 | 95.5 | 103 | 6-M12x20 | M20x2.5x32 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 27 |
| SKP007827 | 190 | 130 | 110 | 45 | 50 | 20 | 6 | 107 | 103 | 12-M12x20 | M30x3.5x40 | 3/8" | 1/4" | 45 | 15.5 | 30.5 | 38 | 13.5 | 38 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS014480 HYDRAULIC CYLINDER MH125 FOR POWER CHUCK | ||||||
|
|
||||||
| THS014481 HYDRAULIC CYLINDER MH100 FOR POWER CHUCK | ||||||
|
|
||||||
| THS014482 HYDRAULIC CYLINDER MH150 FOR POWER CHUCK | ||||||
|
|
||||||
| THS014483 HYDRAULIC CYLINDER MH80 FOR POWER CHUCK | ||||||
|
|
||||||
